Double Glazed Windows BCW83 Low-Maintenance Casement Window Series

Casement Window

Double Glazed Windows BCW83 Low-Maintenance Casement Window Series

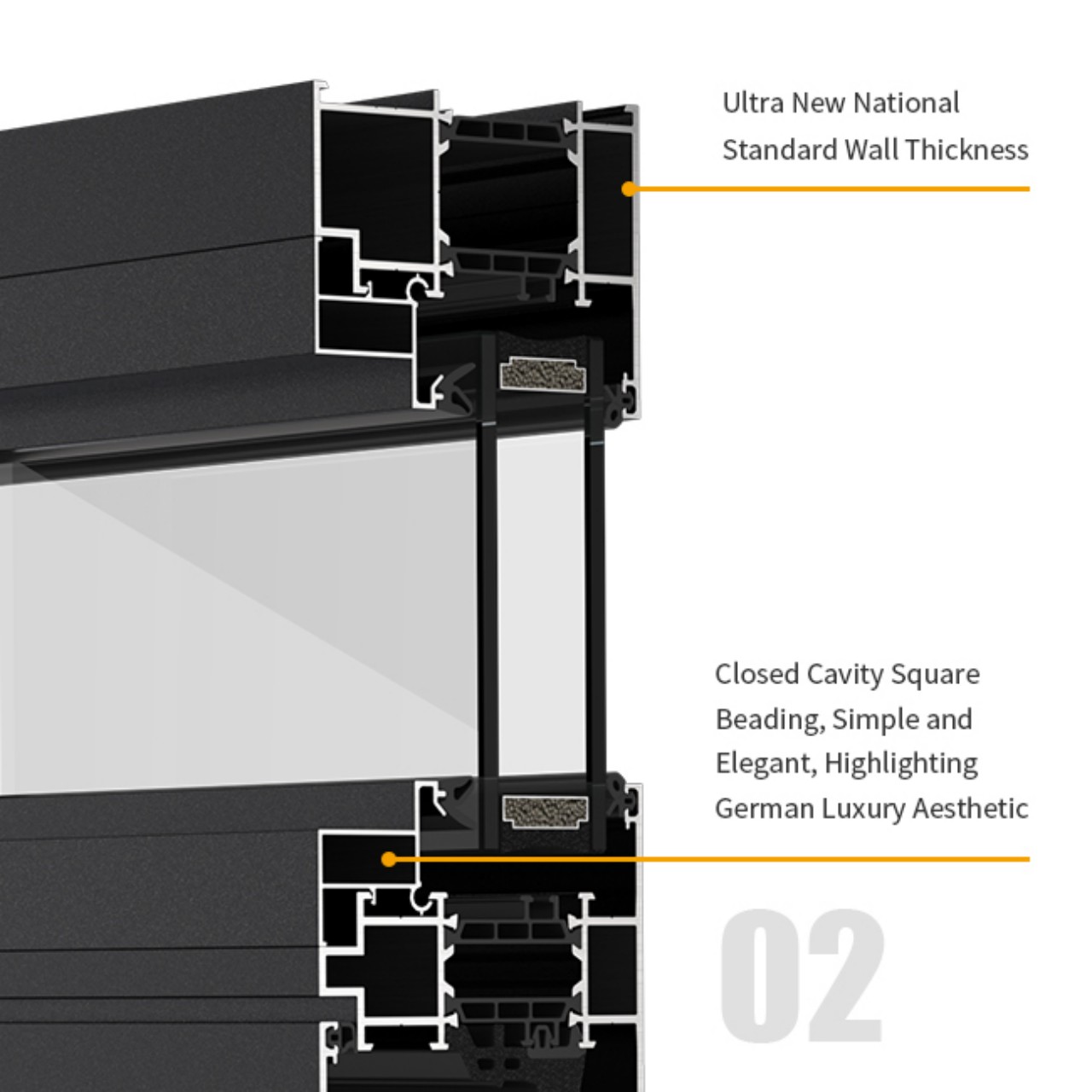

1. Closed-Chamber Square Pressed Line Design: Featuring a closed-chamber square pressed line design, this window not only presents a clean and elegant appearance but also aligns perfectly with modern German-style light luxury aesthetics. It beautifully combines elegance and functionality, elevating the overall design of your house.

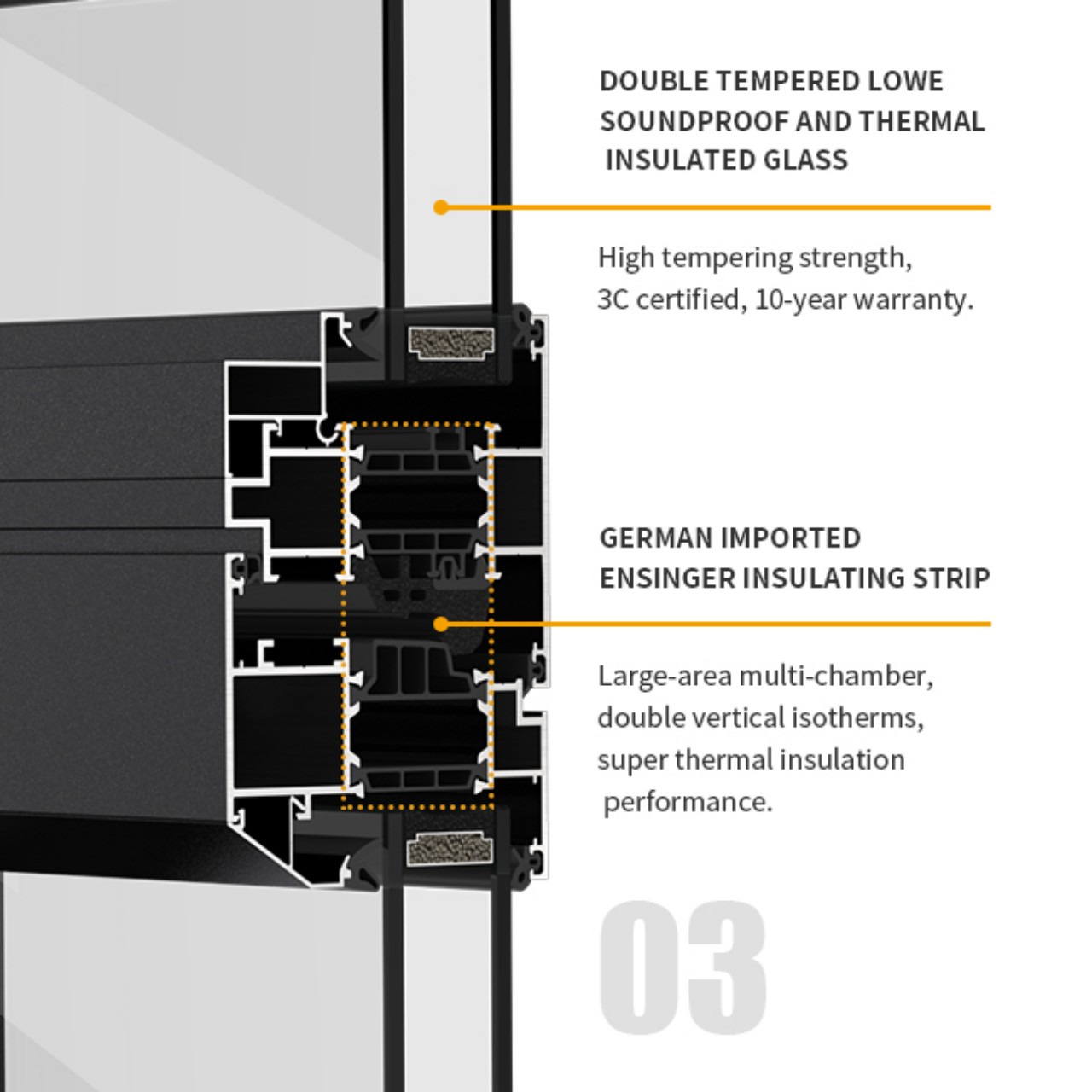

2. German Imported Ensinger Insulating Strips: Equipped with large-width multi-chamber insulating strips and double vertical isothermal lines, this window offers exceptional thermal insulation performance. It significantly reduces energy consumption, keeps your indoor environment warm in winter and cool in summer, and creates an energy-efficient and eco-friendly living space.

3. Double-Toughened LOW-E Soundproof and Insulating Glass: Adopting high-strength double-tempered LOW-E glass to provide excellent sound and heat insulation performance. With 3C certification and quality assurance, it provides a comfortable living experience for a long time.

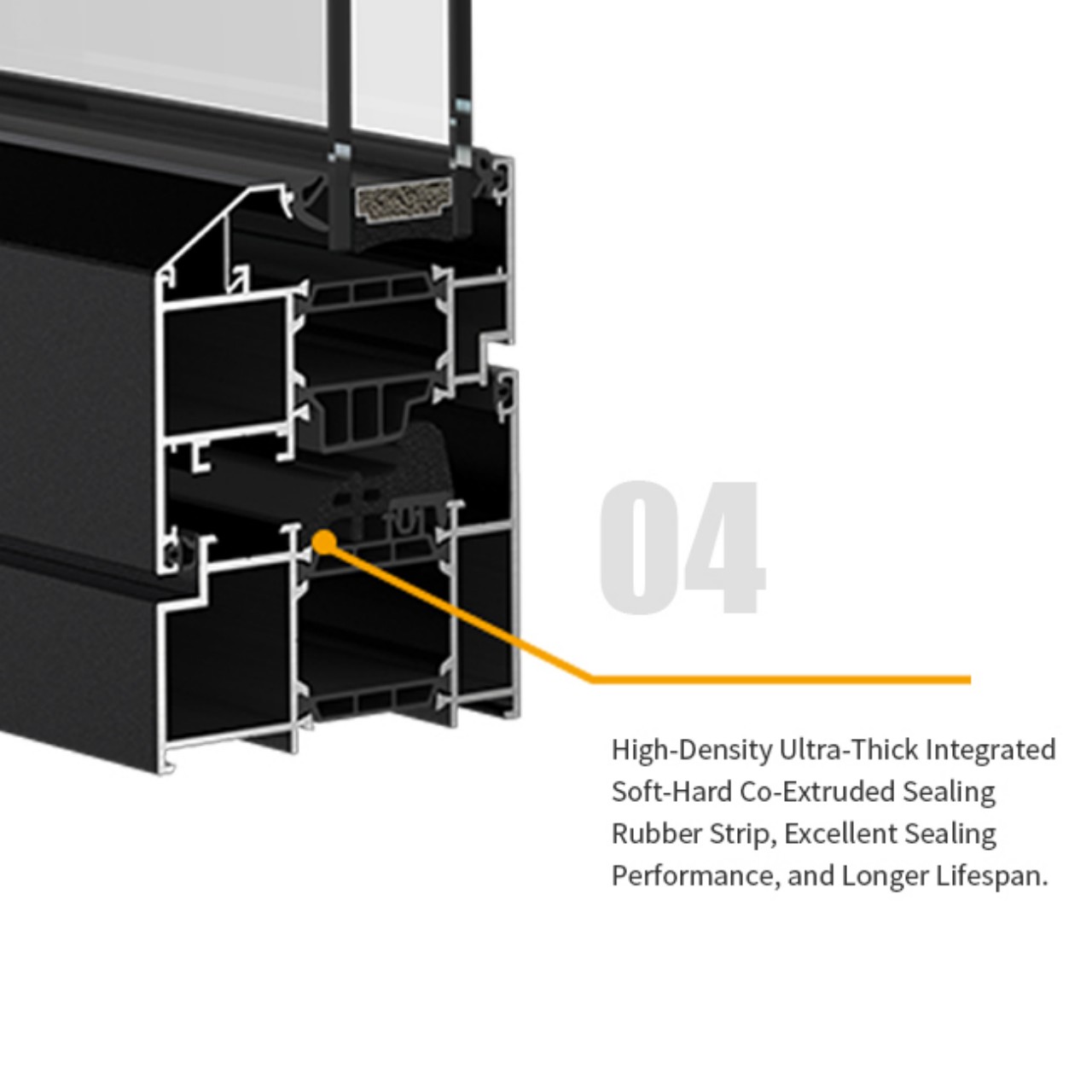

4. HAIDA Composite Sealing Strips: Made from HAIDA's automotive-grade EPDM composite material, known for its excellent resilience and corrosion resistance. The soft and hard co-extrusion design effectively blocks noise and dust, ensuring a quiet and fresh indoor environment and enhancing overall living quality.

5. Full Suite of Imported Components: Features ROTO tilt-and-turn hardware and iHandle base-free handles, paired with embossed marking technology. The surface is resistant to fingerprints and stains, with silver ion antibacterial properties, providing a high-quality operational experience and safety assurance.

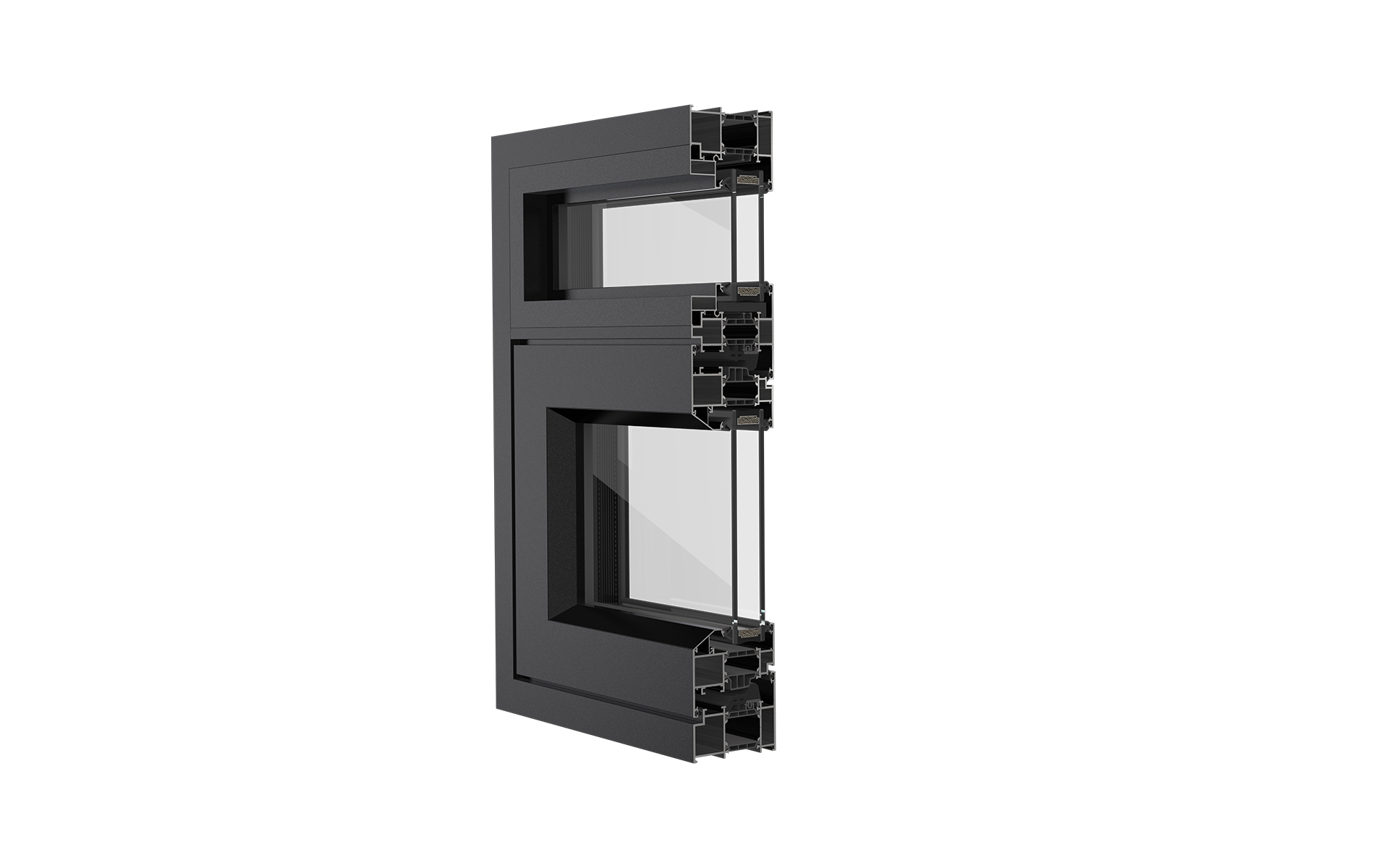

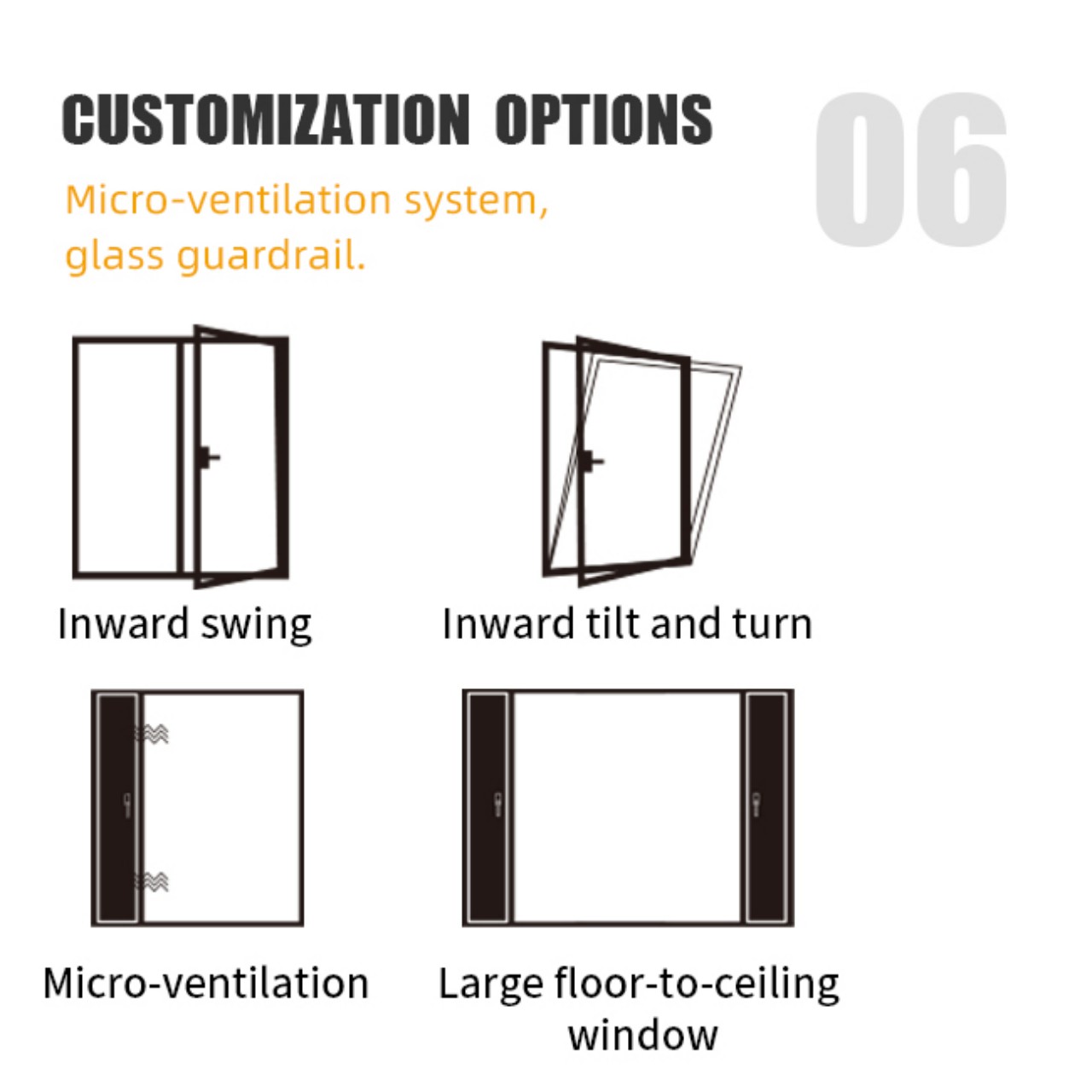

6. Verssatile Window Design Options: Supports customization of various window types, including inward-opening windows, tilt-and-turn windows, picture windows, micro-ventilation windows, and arched windows. Whether you seek stylish aesthetics or specific ventilation needs, this window can adapt flexibly to different home design requirements.

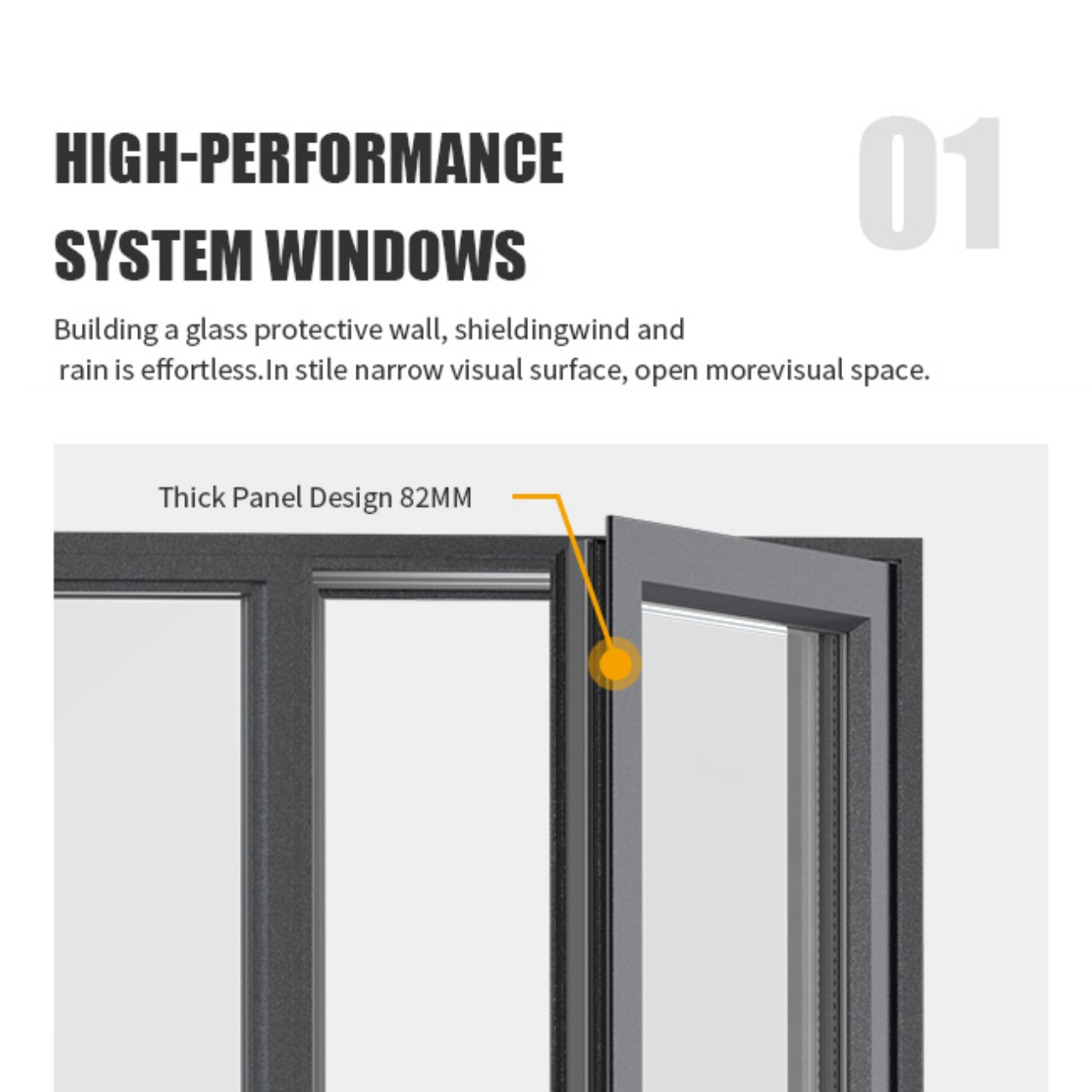

7.  Window Sash Thickness of 82mm: The sash is robust with a thickness of 82mm, offering enhanced thermal insulation and a range of glass solutions.

8.  5mm + 27A + 5mm Low-E Soundproof and Insulating Insulated Glass: Utilizes 5mm + 27A + 5mm Low-E insulated glass, delivering exceptional soundproofing and insulation. It effectively reduces indoor-outdoor temperature differences, improves living comfort, and is energy-efficient and environmentally friendly.

    Product DetailsDETAILS

    Energy Efficient Hurricane Prevention Aluminium window
    NQ8-2
    NQ8-3
    NQ8-4
    color windows are available

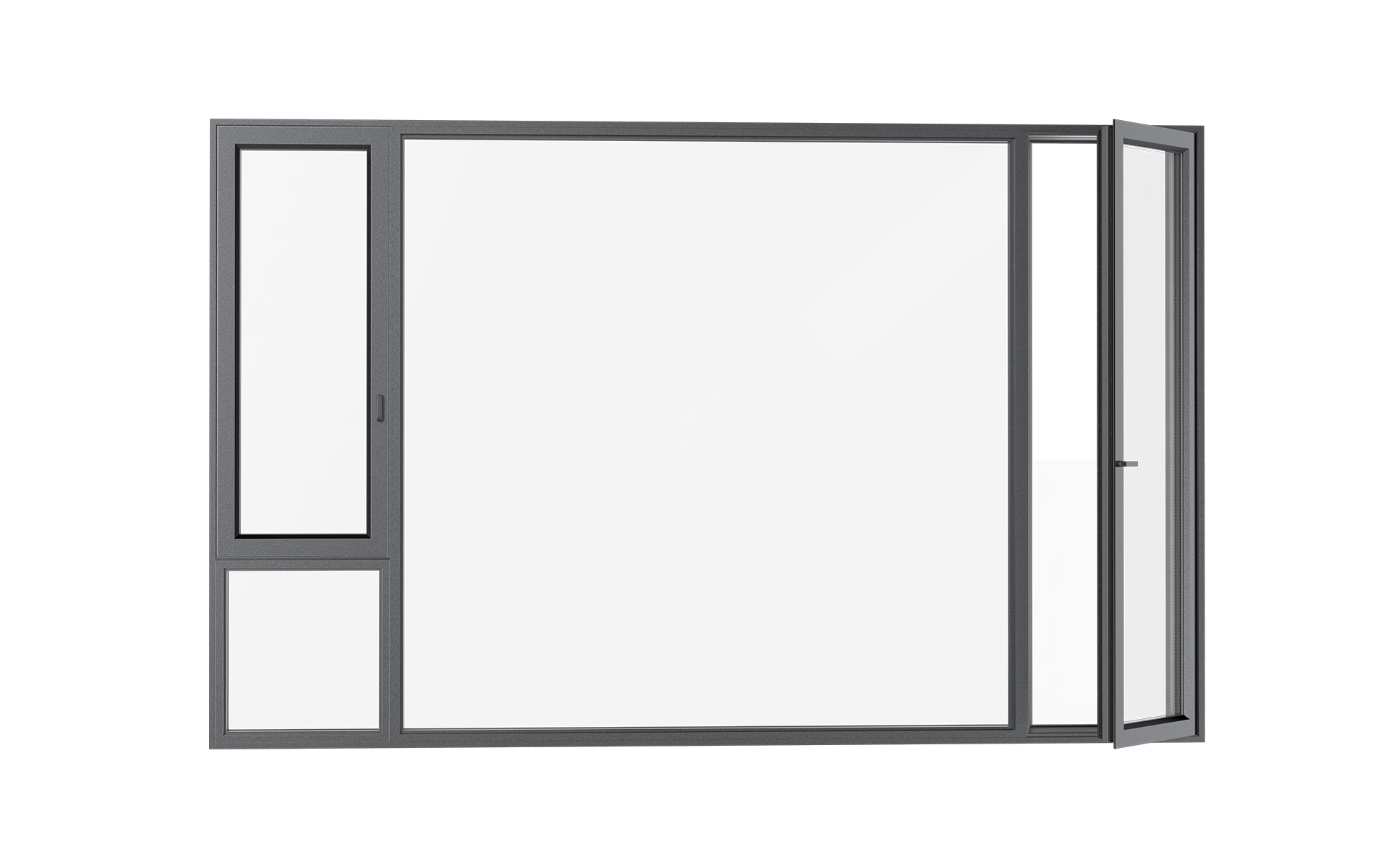

    casement window opening types
    NQ8-7

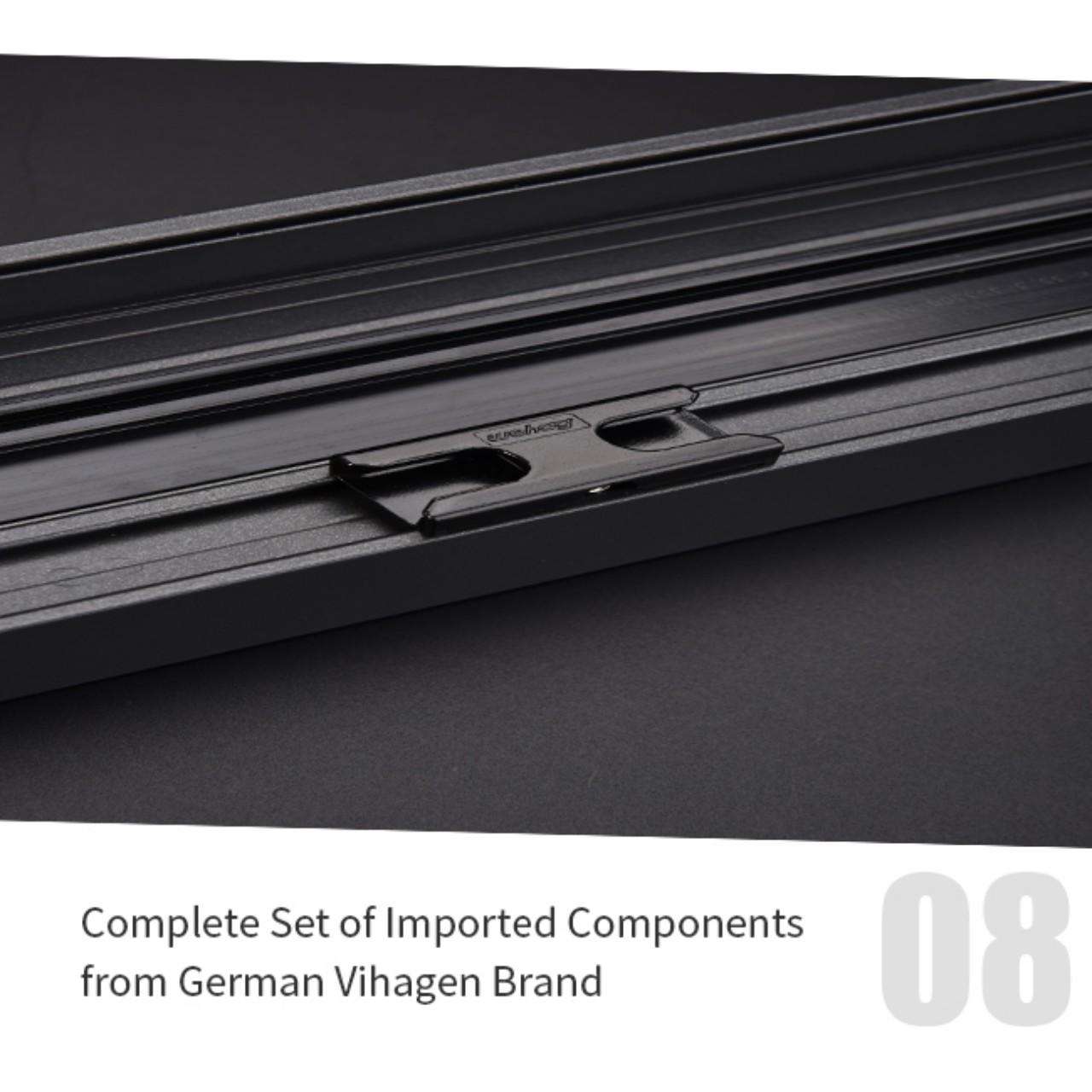

    NQ8-8
    NQ7-6
    window security lock
    Thermal Break Insulated Window
    Thermal break aluminum frame double glazed window casement windows
    soundproof double glazed insulated aluminium glass
    Double glazed aluminum windows
    0102030405060708091011121314

    Product ParameterPARAMETER

    Open style Inward with tilt and turn function
    material 6063-T5 Aluminum Alloy
    Profile thickness 1.8-2.0mm
    Waterproof performance GB/T 7106 △p≥700   Level 6
    Wind load resistance performance GB/T 7106 P3≥5.0   Level 9
    U value rating GB/T 8484 2.5w/(㎡.k)
    Air permeability performance GB/T 7106 q2≤0.5  Level 8
    Acoustic performance GB/T 8485 ≥38dB
    Surface treatment Powder coating
    Custom color Gray/Coffee/Black
    Fly screen yes
    Screen material 0.4mm stainless steel fly screen
    Hardware ROTO
    Glass type Double tempered glass
