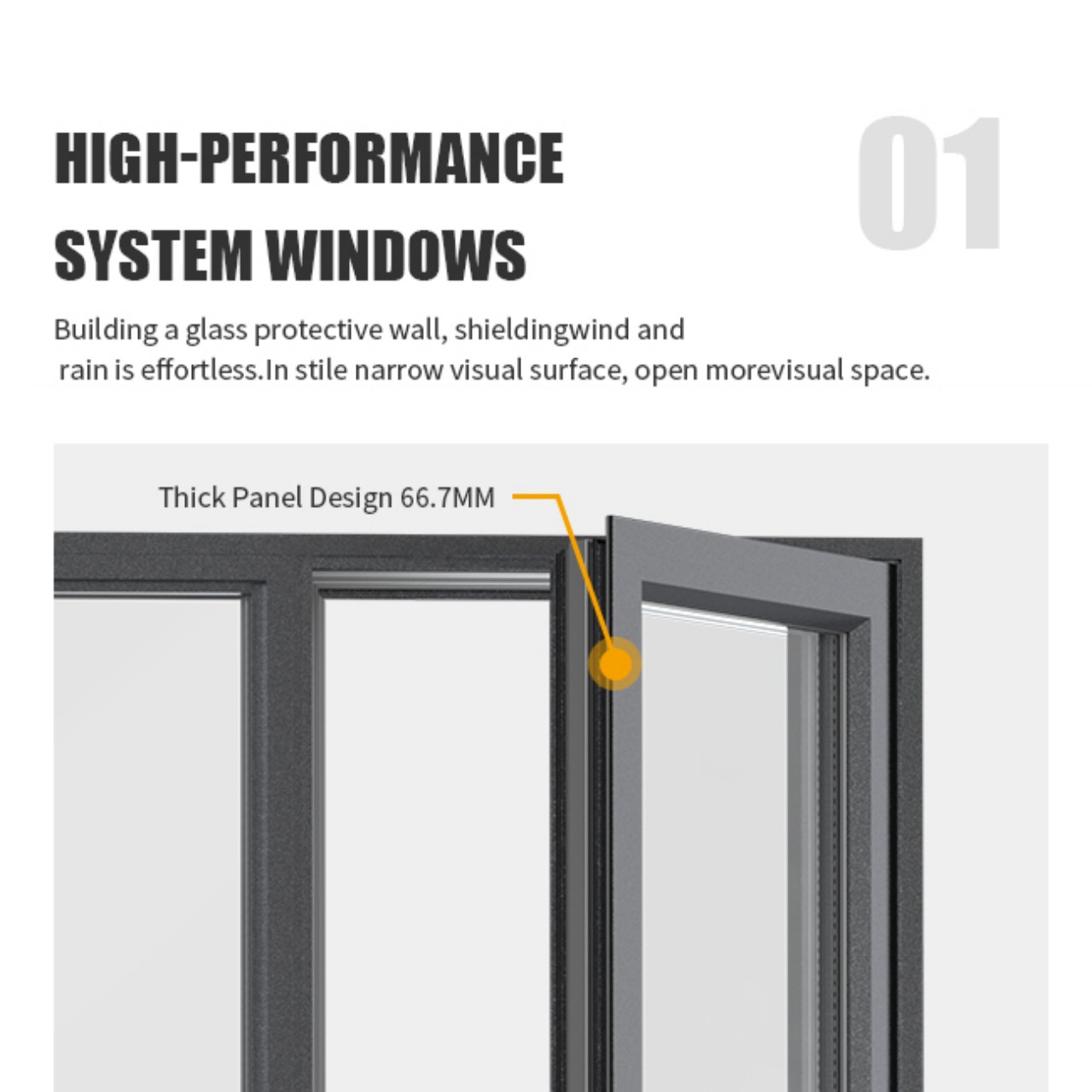

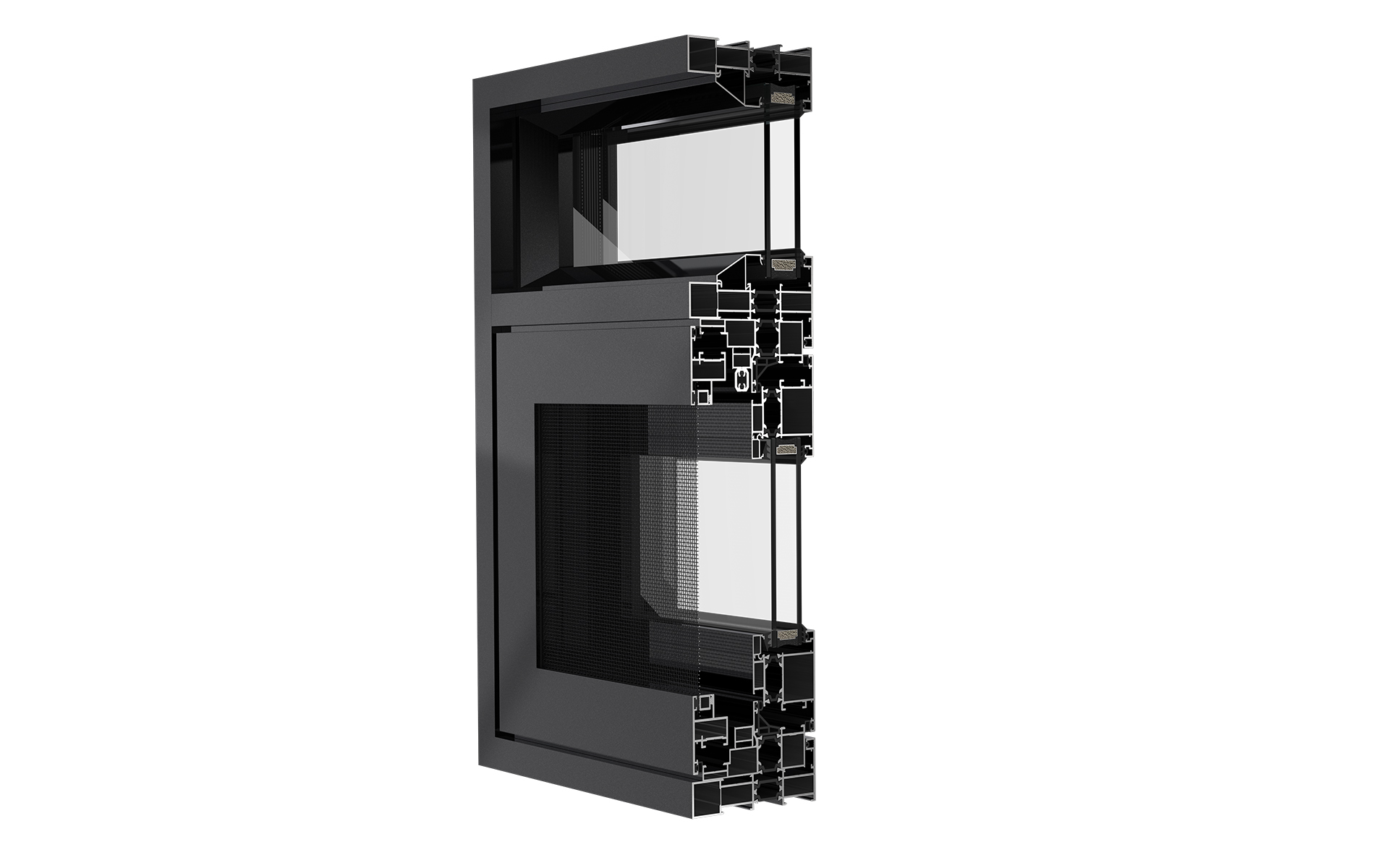

Custom Window BCW110A Series Energy-Efficient Casement Window System
Product DetailsDETAILS
0102030405060708091011121314
Durable Locking Mechanisms:

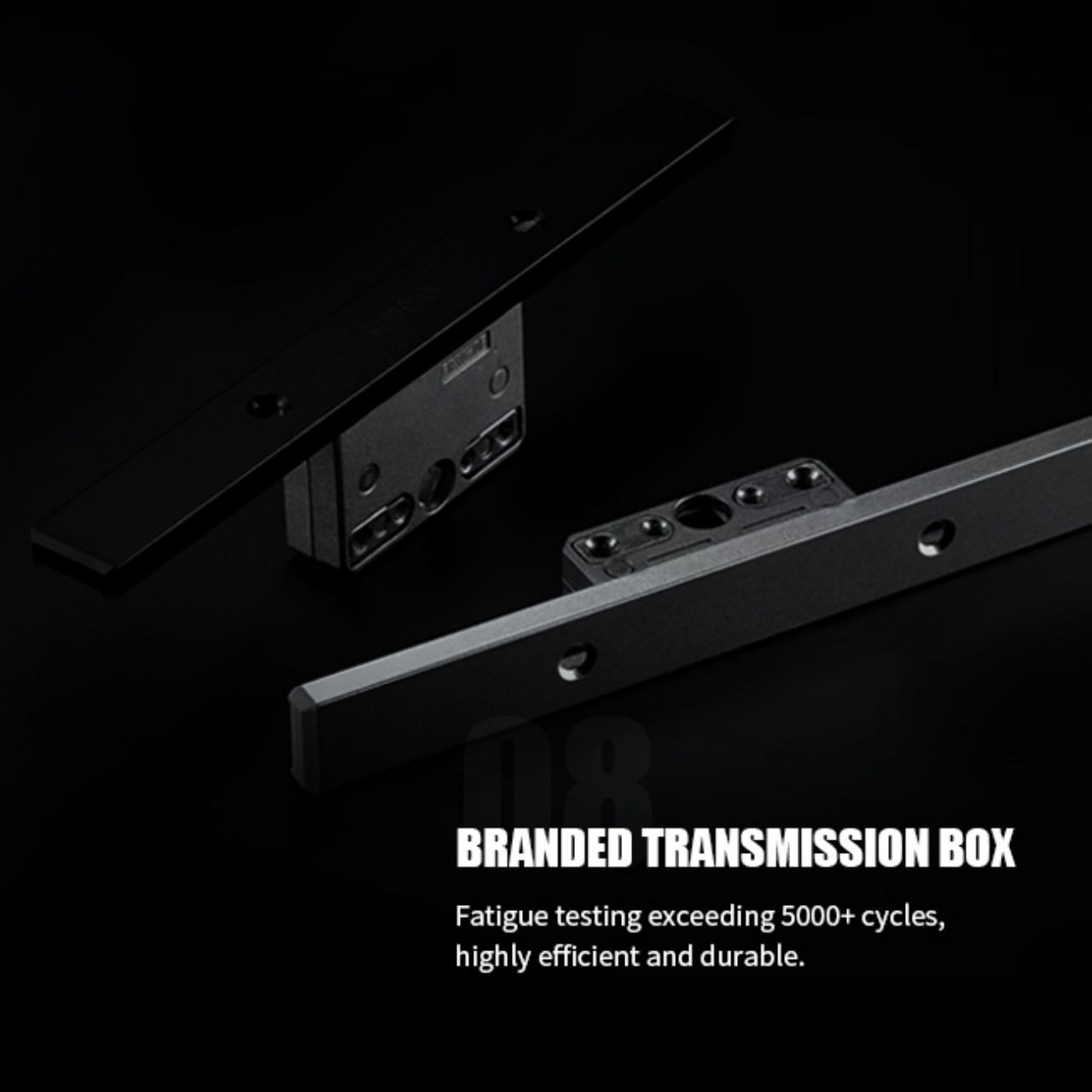

Our windows feature German Runo stainless steel lock points and lock seat transmission box kits. These components are designed to be corrosion-resistant and rust-free, ensuring the windows remain secure and operational over time.
Seamless Waterproof Construction:
With a non-concealed structure both inside and out, our windows offer superior waterproof performance. This design ensures that your home stays dry and comfortable, even during the rainiest seasons.
Safety-First Accessories:
We've integrated metal corner guards to protect the safety of you and your family. Additionally, anti-fall ropes and assistive lifting blocks are included to elevate the safety coefficient of our windows.

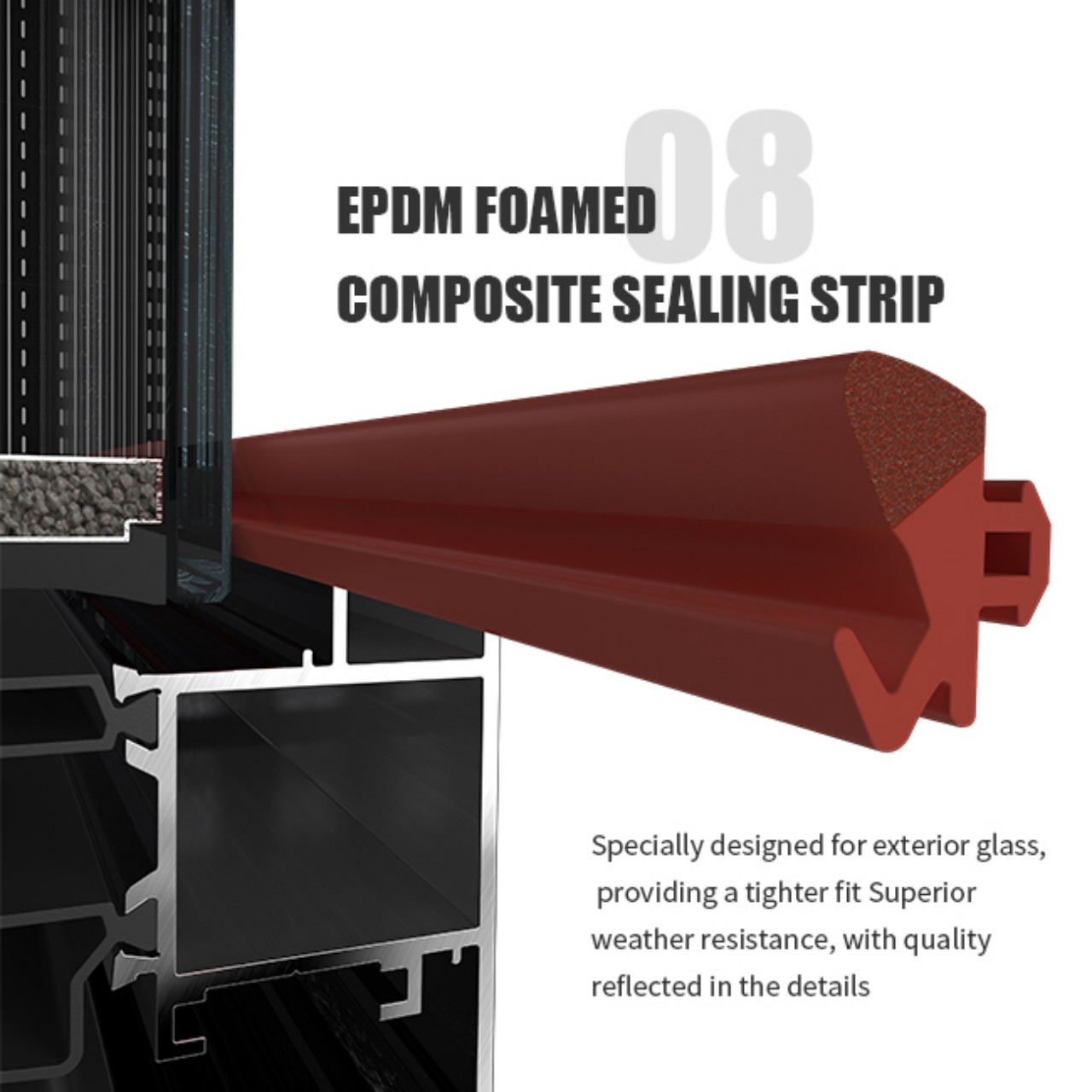

Superior Sealing Technology:

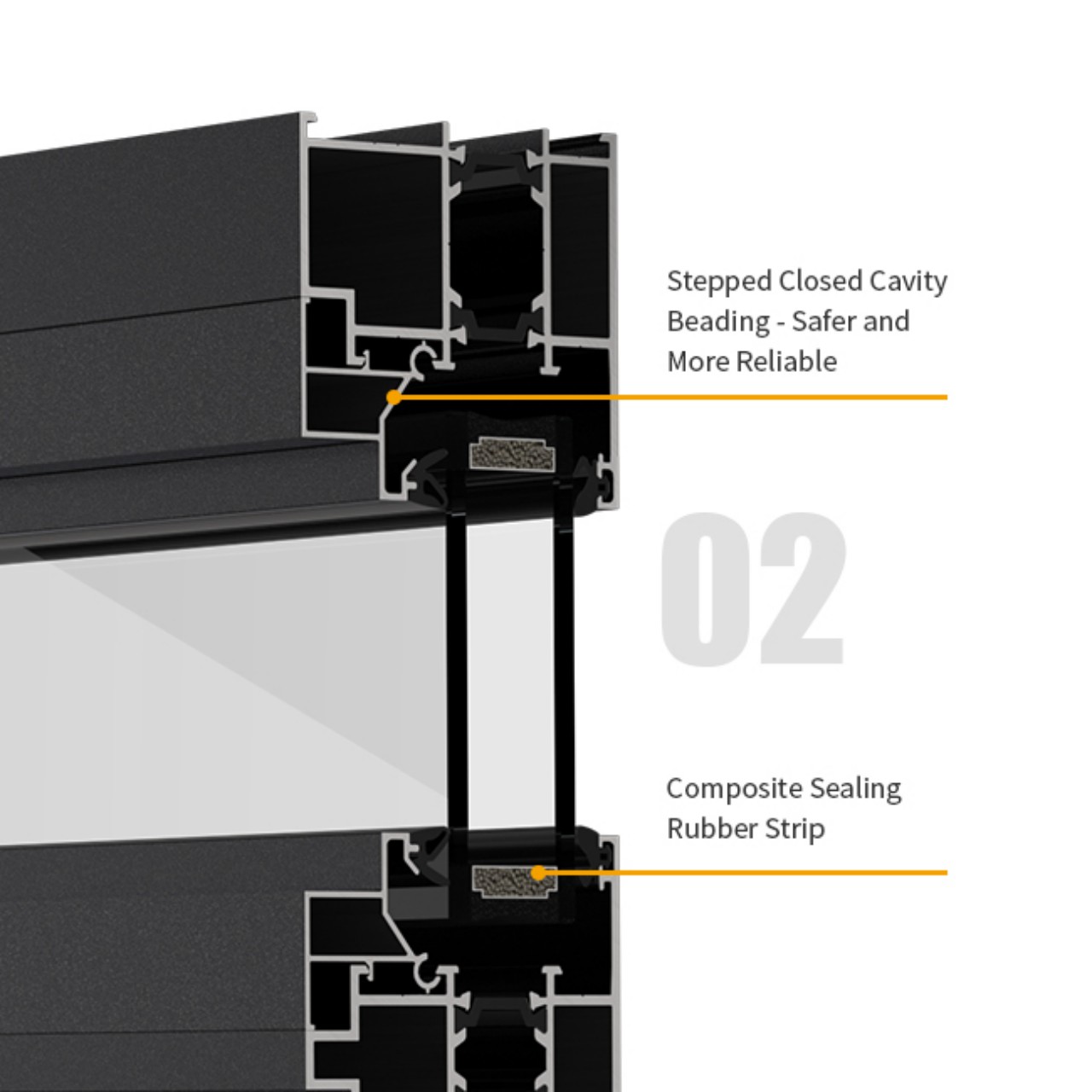

Our windows are enhanced with ethylene propylene diene monomer (EPDM) foam composite sealing strips. These strips are renowned for their excellent sound insulation and resistance to aging, providing a quiet and long-lasting seal.
Versatile Fan Options:
We offer two types of fan options: "seamless welded fan" and "jointed fan" to cater to different customer needs. These options allow for customization based on aesthetic preference and structural requirements.
Product ParameterPARAMETER
Open style | Outward |
material | 6063-T5 Aluminum Alloy |
Profile thickness | 1.5-1.8mm |
Waterproof performance GB/T 7106 | △p≥600 Level 5 |
Wind load resistance performance GB/T 7106 | P3≥5.0 Level 9 |
U value rating GB/T 8484 | 2.5w/(㎡.k) |
Air permeability performance GB/T 7106 | q2≤0.5 Level 8 |
Acoustic performance GB/T 8485 | ≥35dB |
Surface treatment | Powder coating |
Custom color | Gray/Coffee/Black/Metallic Grey/light gray |
Fly screen | yes |
Screen material | 0.4mm stainless steel fly screen |

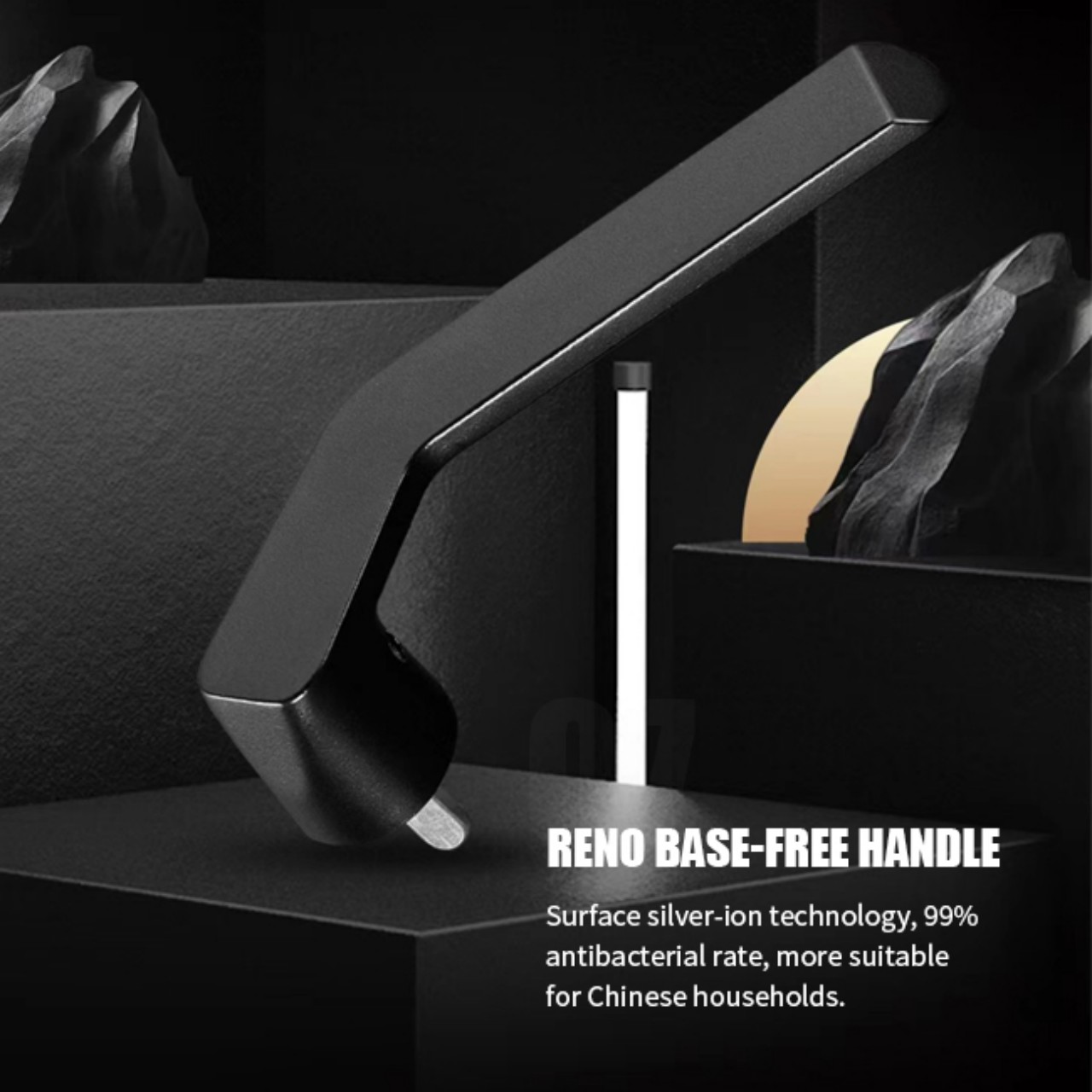

Hardware | RUNO |

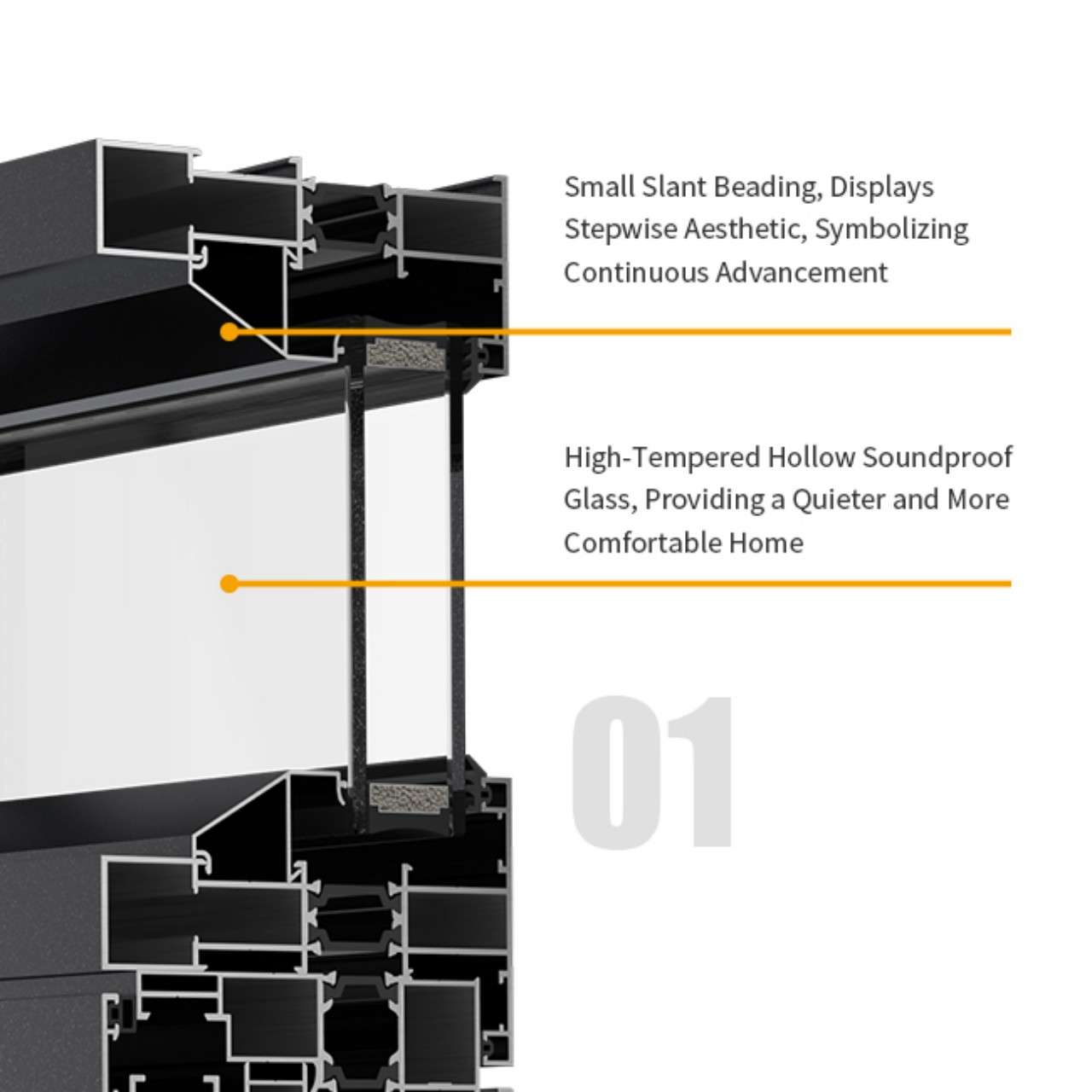

Glass type | Double tempered glass |
