Construction Windows BCW68 Series Thermal Break Casement Window Solutions

Casement Window

Construction Windows BCW68 Series Thermal Break Casement Window Solutions

1. Standard full-window use seal strips: Designed with dual internal and external pressure seal strips to ensure the window's air and water tightness, enhancing the windproof and waterproof performance. This allows you to enjoy a comfortable home environment in any weather condition.
2. Standard 5+20+5 clear low-emissivity (Low-E) glass: Equipped with standard 5+20+5 clear low-emissivity (Low-E) glass, which has excellent heat insulation and retention properties, effectively reducing energy consumption. This keeps your home warm in winter and cool in summer, while also enhancing the comfort of the living environment.
3. Support for European standard hardware grooves and high-grade accessories: Compatible with European standard hardware grooves, with a full set of Vihaer hardware included. It can be paired with ROTO's inward opening and tilting accessories and iHandle baseless handles, enhancing the convenience and safety of window operation and providing you with a high-quality user experience.
4. Square closed chamber pressure line design, safer and more reliable: The closed chamber pressure line design further improves the safety and stability of the window, ensuring it does not deform easily over long-term use, giving you peace of mind in your living space.
5. Clear drainage holes for more rational drainage: The clear drainage hole gravity drainage system has a more rational drainage structure, preventing water accumulation and leakage and providing better waterproof protection for your home.
6. Composite sealing strip, enhancing water and air tightness: The composite sealing strip is designed to tightly adhere to the glass, significantly improving the window's water and air tightness. It effectively blocks the intrusion of external noise and dust, creating a healthier and quieter living environment.
7. Double vertical isothermal line design for energy saving and environmental protection: The double vertical isothermal line design effectively reduces the rate of indoor and outdoor temperature exchange, enhancing overall insulation and heat retention performance. This helps you reduce energy consumption, making it environmentally friendly and economical.
8. Soft and hard co-extruded sealing strip for long-lasting durability: The soft and hard co-extruded sealing strip has excellent resilience and weather resistance, significantly improving the window's air tightness and extending the effective service life of the window frame, ensuring it remains as good as new for a long time.

    Product DetailsDETAILS

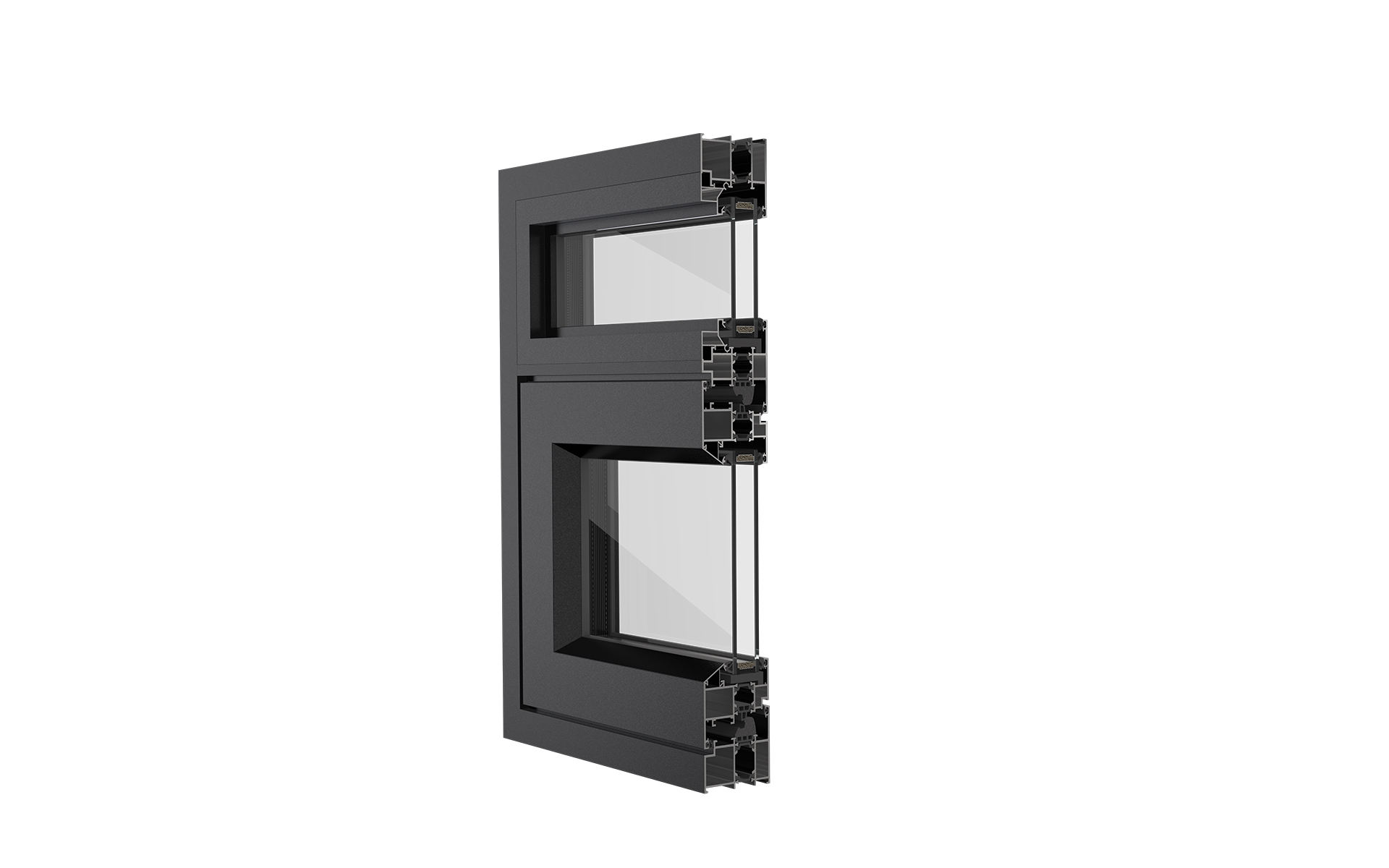

    Thermal break aluminum frame double glazed window casement windows
    soundproof double glazed insulated aluminium glass
    Double glazed aluminum windows
    homedecorationcolour choice

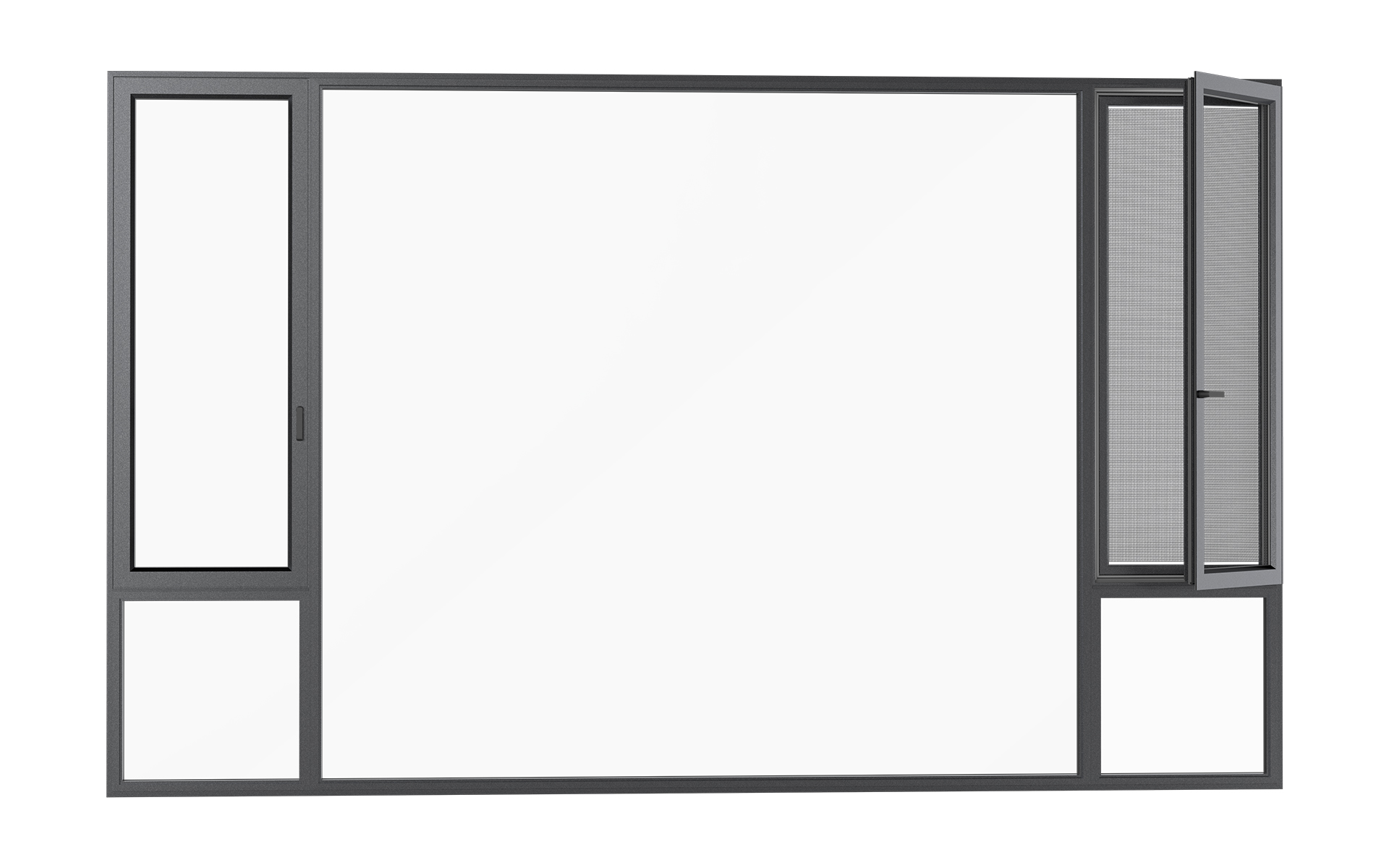

    tilt and turn windows aluminum glass window energy efficient double glass glaze tilt- turn window
    NQ7-6
    window security lock
    Thermal Break Insulated Window
    0102030405060708

    Product ParameterPARAMETER

    Open style Inward with tilt and turn function
    material 6063-T5 Aluminum Alloy
    Profile thickness 1.8-2.0mm
    Waterproof performance GB/T 7106 △p≥700   Level 6
    Wind load resistance performance GB/T 7106 P3≥5.0   Level 9
    U value rating GB/T 8484 2.5w/(㎡.k)
    Air permeability performance GB/T 7106 q2≤0.5  Level 8
    Acoustic performance GB/T 8485 ≥38dB
    Surface treatment Powder coating
    Custom color Gray/Coffee/Black
    Hardware WEHAG
    Glass type Double tempered glass
