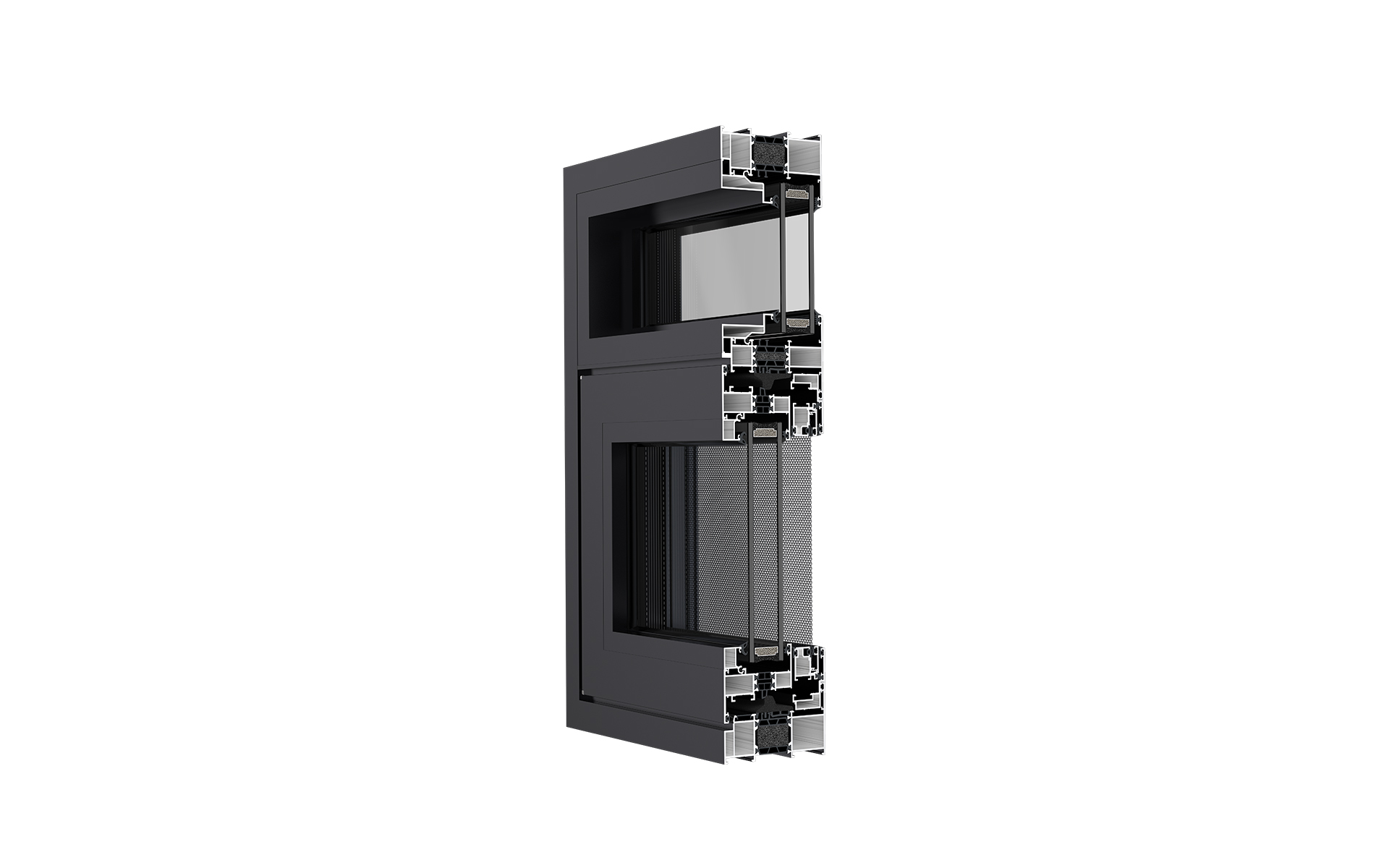

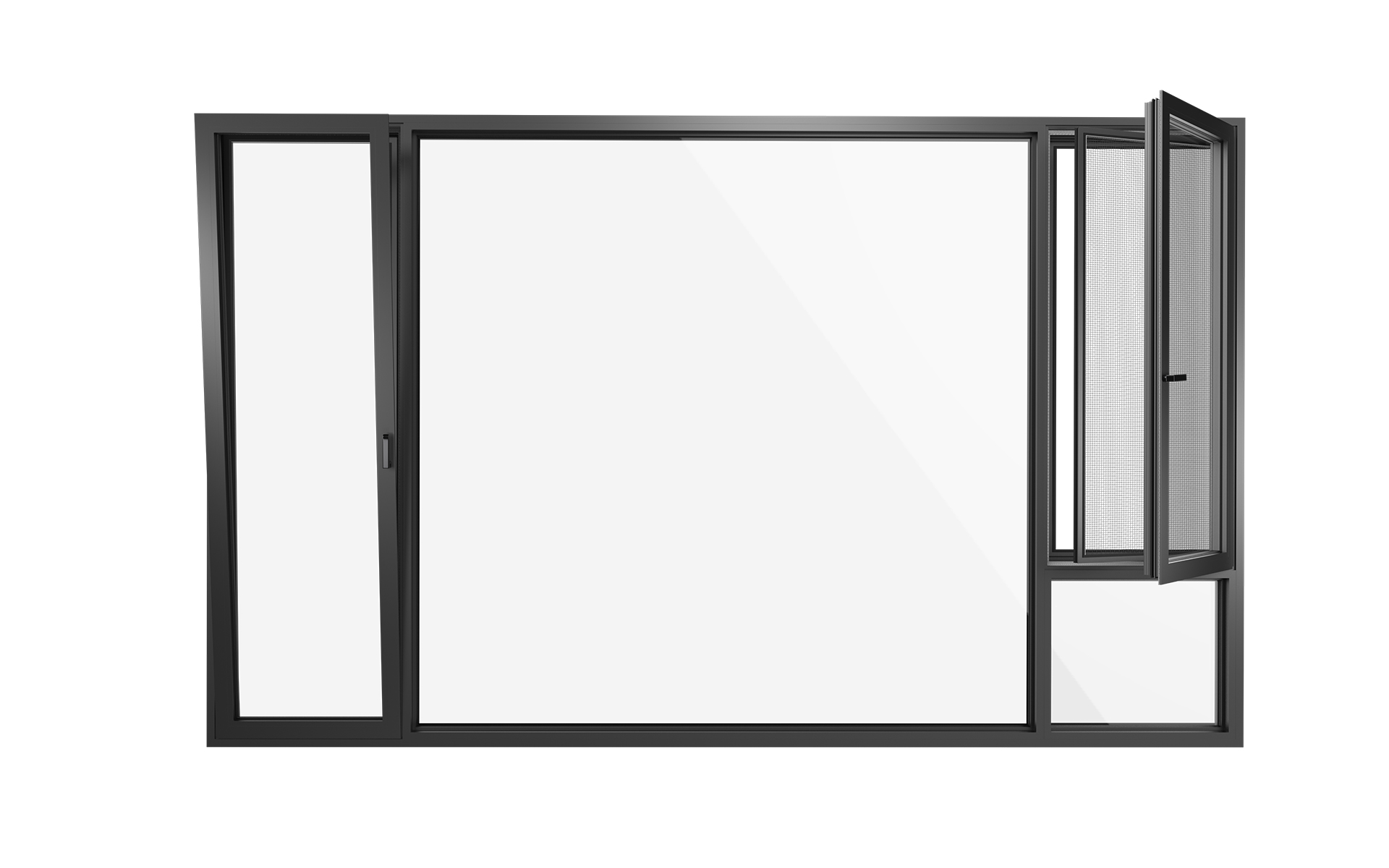

BCW100 Casement window
Product DetailsDETAILS
0102030405060708
Product ParameterPARAMETER

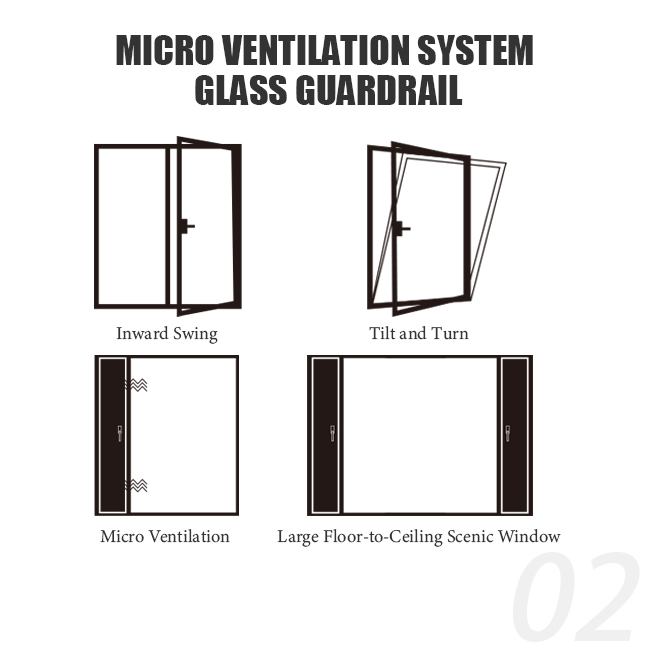

Open style |
Inward with tilt and turn function |
material |
6063-T5 Aluminum Alloy |
Profile thickness |
1.8mm |
Waterproof performance GB/T 7106 |
△p≥700 6 |
Wind load resistance performance GB/T 7106 |
P3≥5.0 9 |
U value rating GB/T 8484 |
2.5w/(㎡.k) |
Air permeability performance GB/T 7106 |
q2≤0.5 8 |
Acoustic performance GB/T 8485 |
≥35dB |
Surface treatment |
Powder coating |
Custom color |
Gray/Coffee/Black |
Fly screen |
yes |
Screen material |
0.4mm stainless steel fly screen |

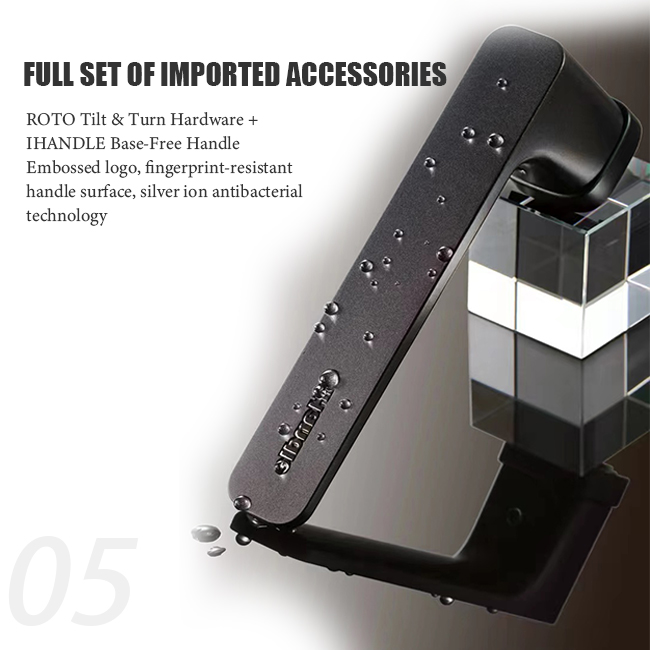

Hardware |
WEHAG |

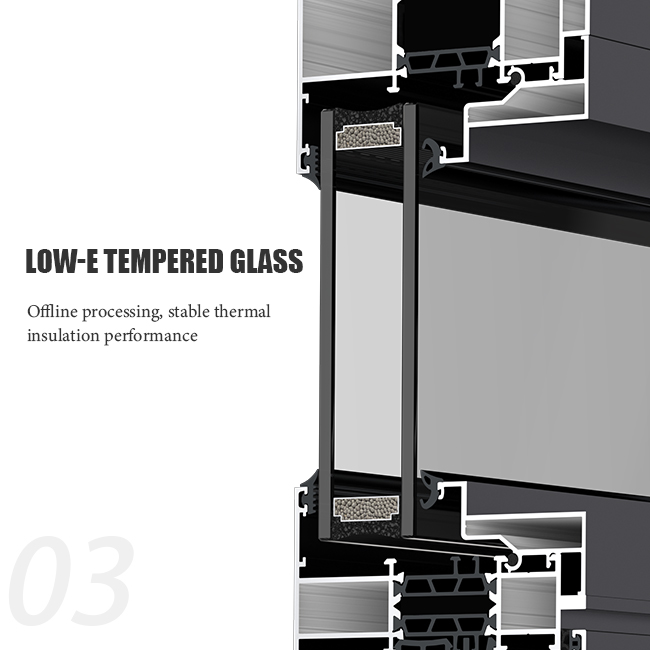

Glass type |
Double tempered glass |
