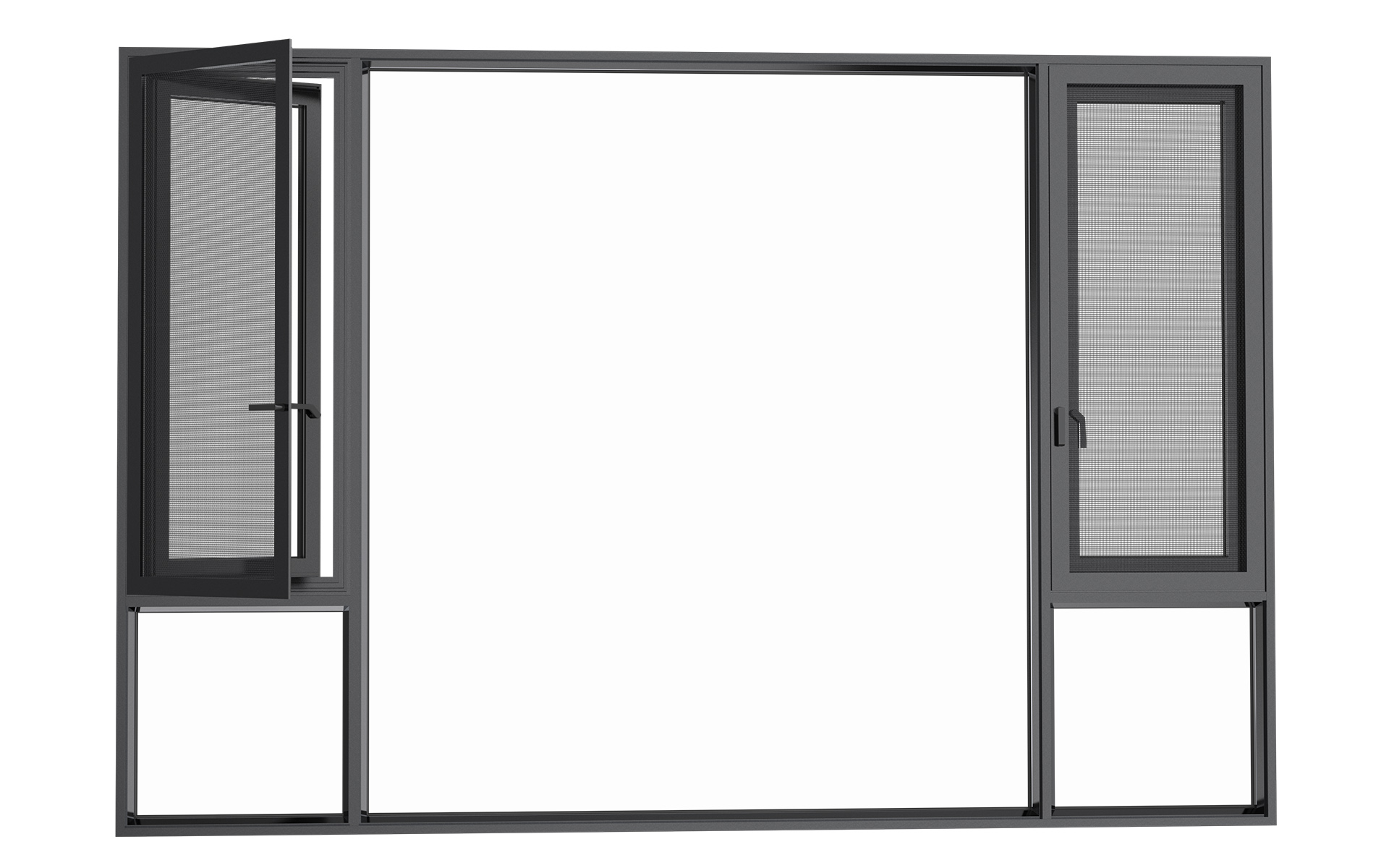

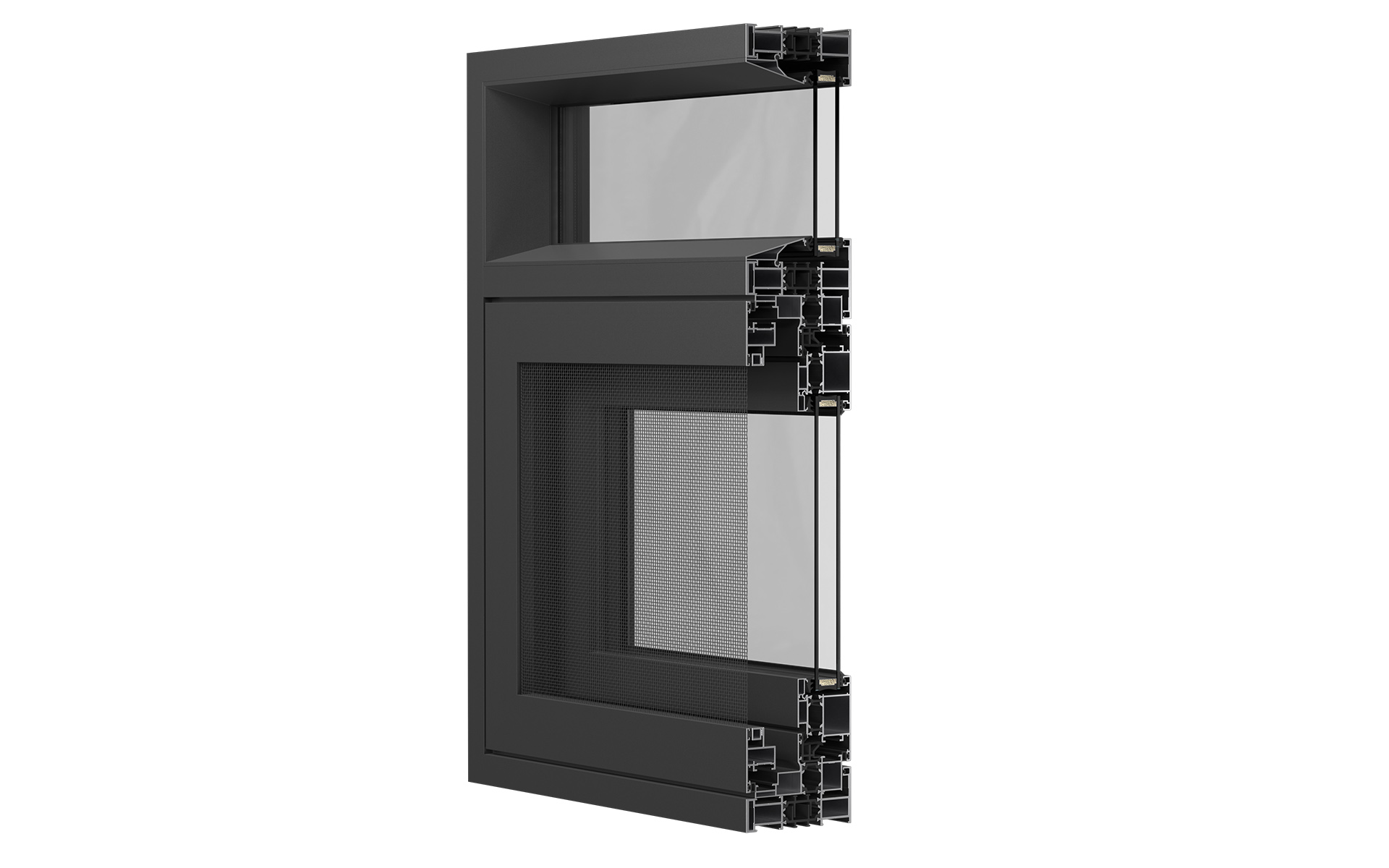

Alu Windows BCW110C Sound-Insulated Casement Window Series
Product DetailsDETAILS
6. Non-invisible drainage structure, effective water resistance: The non-invisible drainage design allows for quick water drainage, preventing water accumulation and leakage, enhancing the window's water resistance and making the home environment safer.

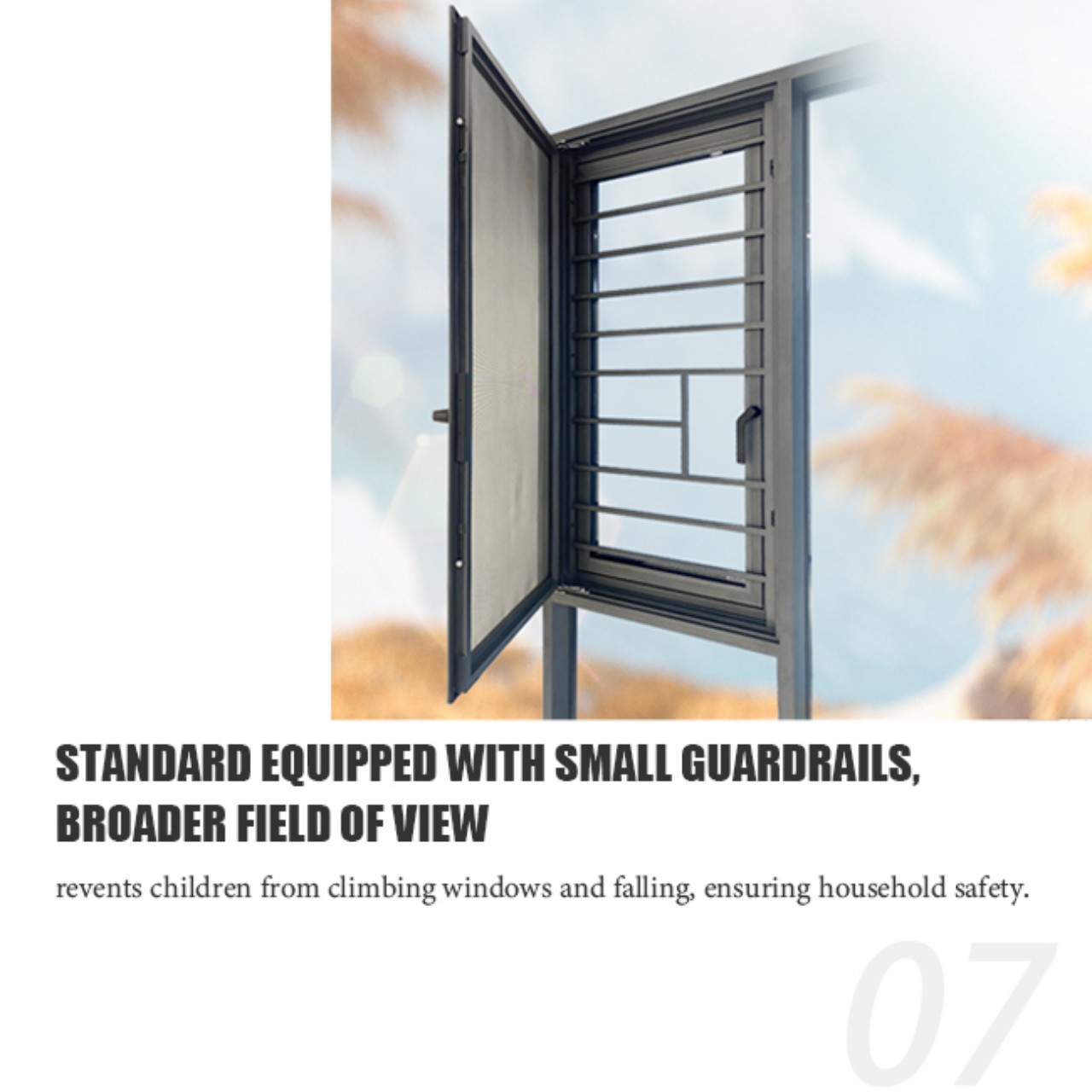

7. Small guard rail, child safety: The optional small guard rail effectively prevents children from accidentally falling out of windows, caring for family safety, especially suitable for families with children.
8. Indoor and outdoor pressure sealing strips with optional gluing process:The default configuration includes indoor and outdoor pressure sealing strips, and an optional gluing process is available for upgrades, especially suitable for double-sided gluing when window to door conversion, matched with zinc alloy vertical drainage hole covers, which not only have good sealing but also prevent insect intrusion, while making the exterior more streamlined and aesthetically pleasing.

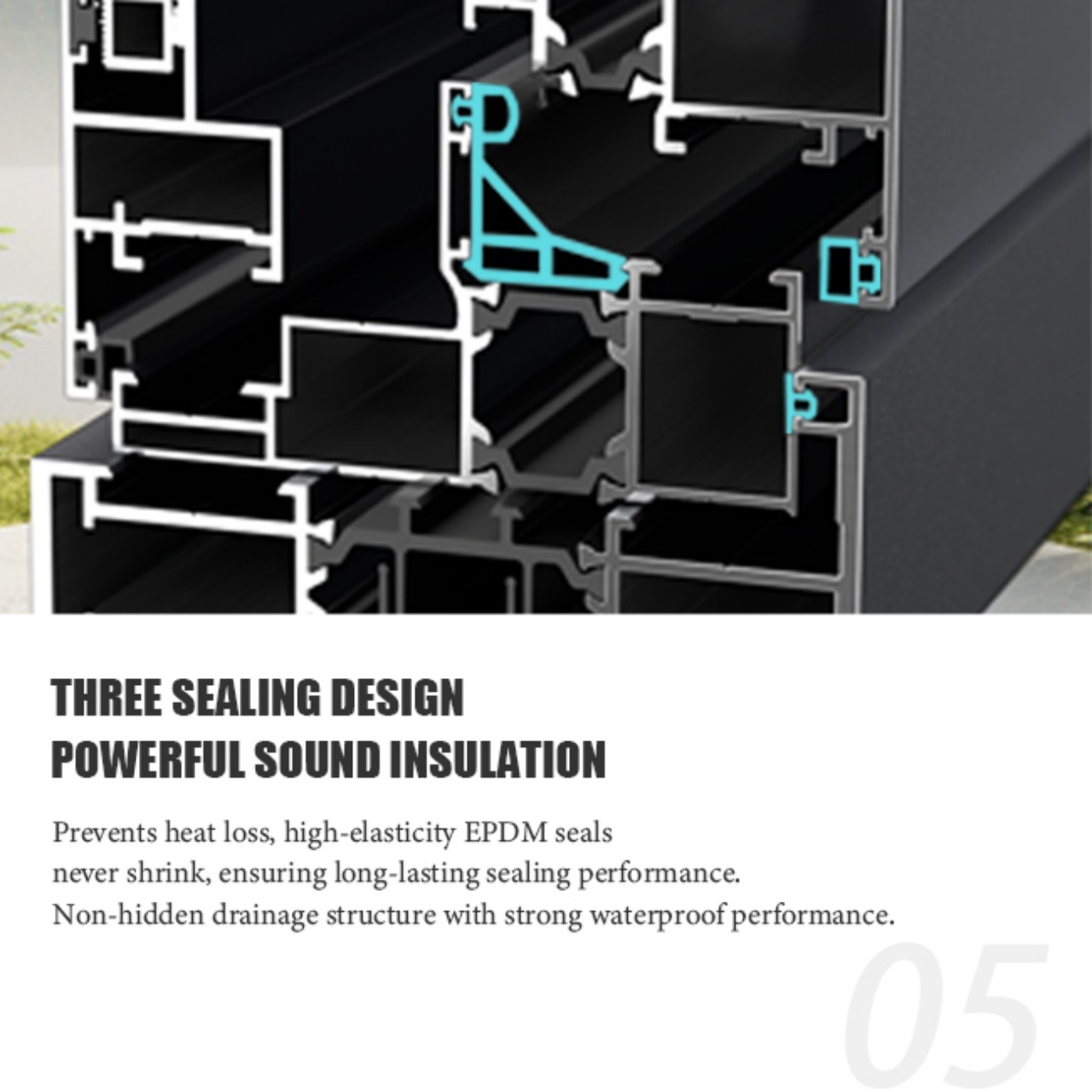

9. Built-in duckbill-shaped sealing strip, triple sealing for glass panels, excellent airtight and soundproofing effects: The glass panel's built-in duckbill seal, combined with the triple sealing design, significantly improves the window's airtightness and soundproofing, keeping the interior quiet and clean.
10. 90-degree and 135-degree corner solutions: Flexible 90-degree and 135-degree corner designs meet various housing needs, whether for large area lighting or personalized design, they can be easily achieved.
Product ParameterPARAMETER
Open style |
Outward |
material |
6063-T5 Aluminum Alloy |

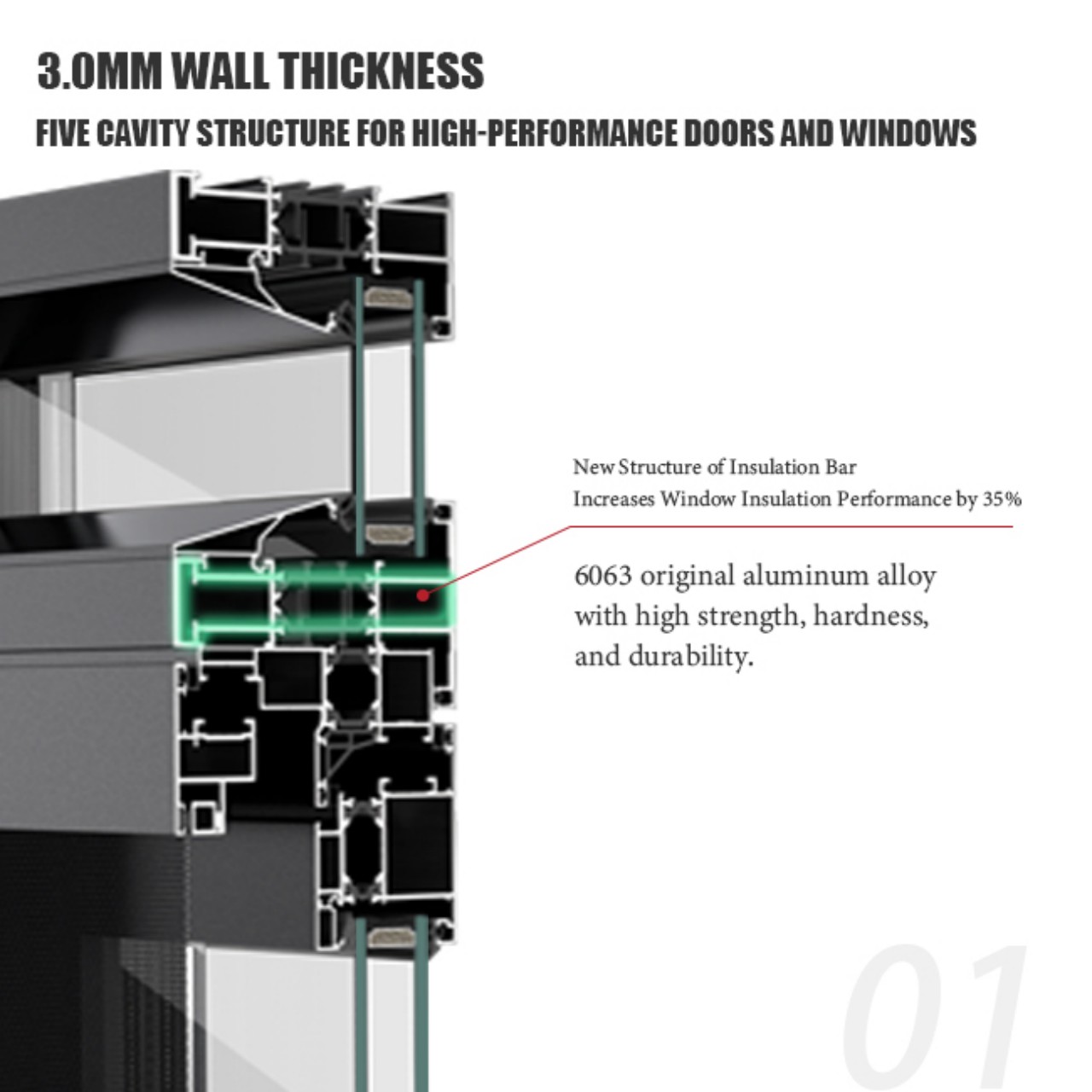

Profile thickness |
1.5-3.0mm |
Waterproof performance GB/T 7106 |
△p≥600 Level 5 |
Wind load resistance performance GB/T 7106 |
P3≥5.0 Level 9 |
U value rating GB/T 8484 |
2.5w/(㎡.k) |
Air permeability performance GB/T 7106 |
q2≤0.5 Level 8 |
Acoustic performance GB/T 8485 |
≥35dB |
Surface treatment |
Powder coating |
Custom color |
Gray/Coffee/Black |
Fly screen |
yes |
Screen material |
0.4mm stainless steel fly screen |

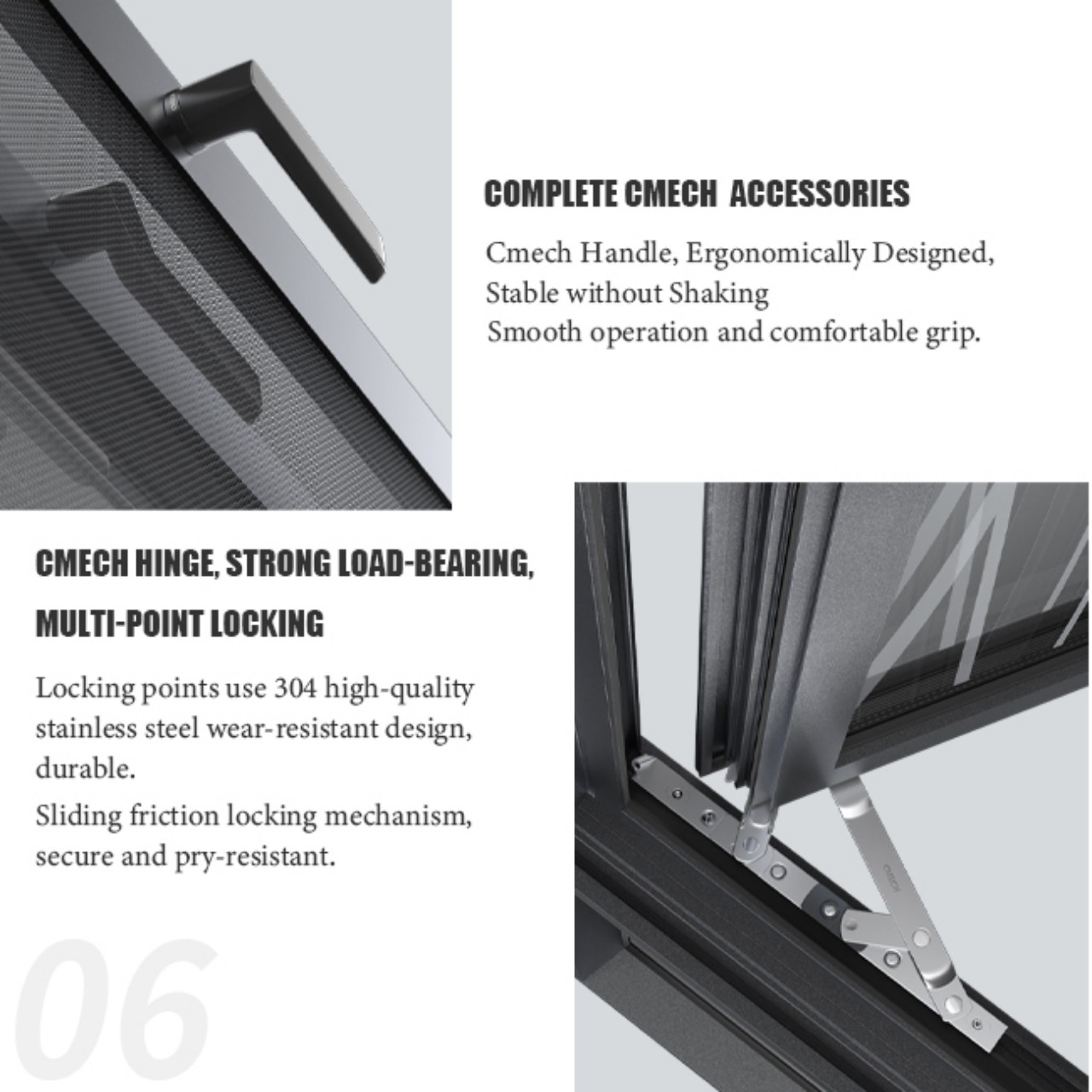

Hardware |
CMECH |
Glass type |
Double tempered glass |
